High Density Cleaner

High Density Cleaner


Description

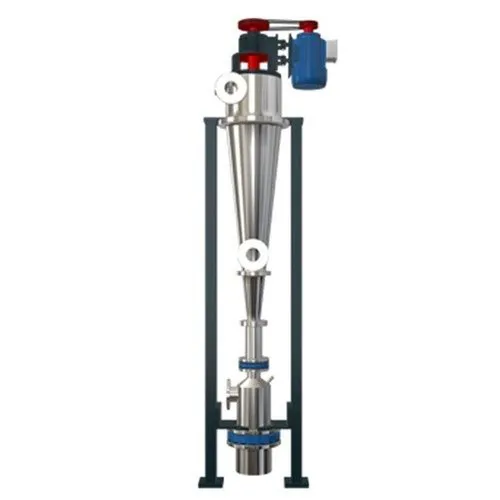

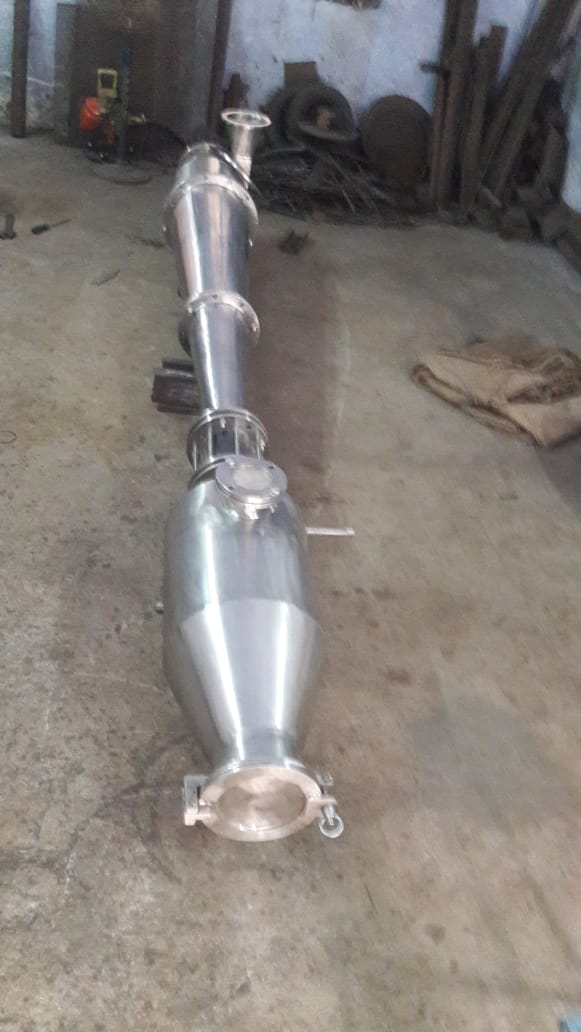

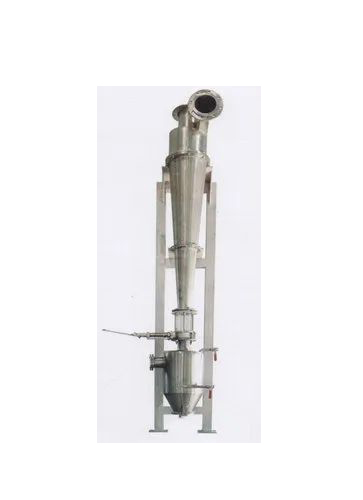

Shree Shakti Engineering make High Density Cleaner used for Paper Making Process after Pulping. It is designed to remove heavy impurities in Paper Pulp such as Paper Clips, Staples, Stones, Nails, Glassess and other heavy contaminants removed by the HD Cleaner. In the top Cylindrical Cone and Long Cone with little Taper Angle for Stock Suspension which Pumped by High Speed, as a result inword stock forms in the form of cyclone force and it separates heavy particles moves and drops it into Reject Collection Chamber and Fiber moves upword as accepted stock (Outlet) and make sure that worked fine efficient.

There are Three Types of High Density Cleaner Available in various capacity :-

  • Manual Operated
  • Operated by Panel Board with Pneumatic Valve (Auto Mode & Manual Mode)
  • Motorised High Density Cleaner



Technical Specification
Capacity 500 LPM TO 3500 LPM
Material Of Construction S.S. 304/316
Operating Consistency 2.0% ΤΟ 3.0%
Operating Pressure 2.0% ΤΟ 3.0%
Pressure Drop 1 TO 1.5 Kg/Cm²
