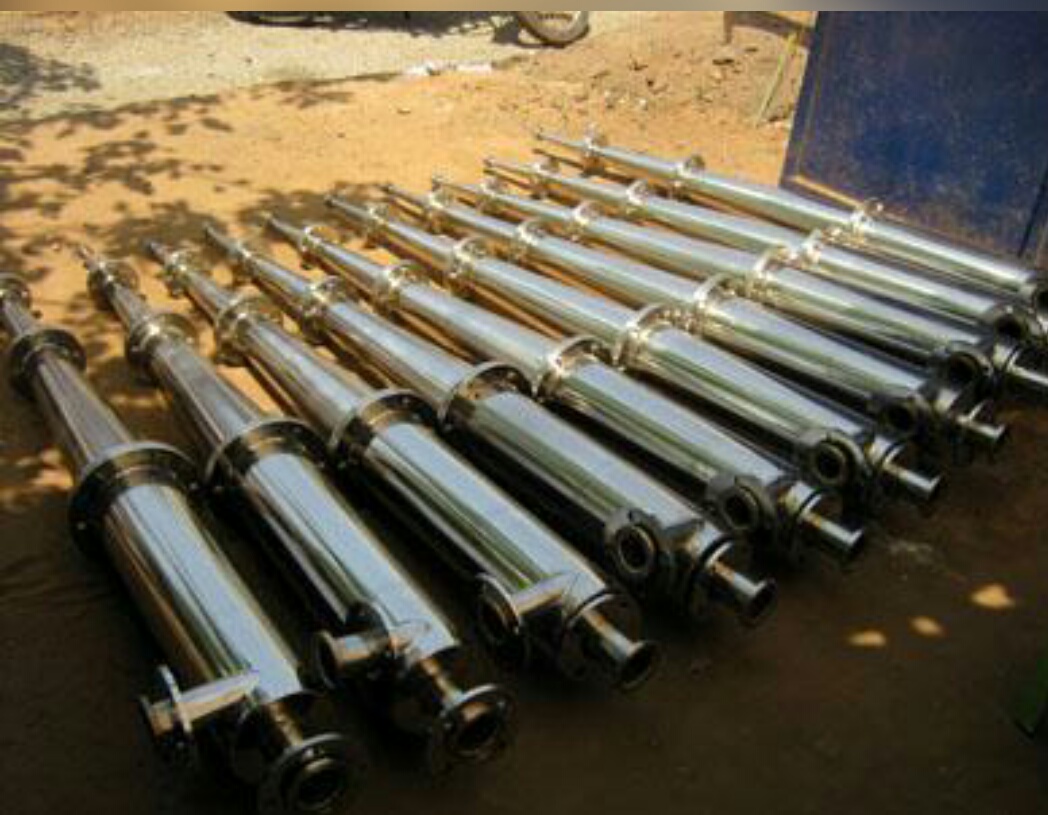

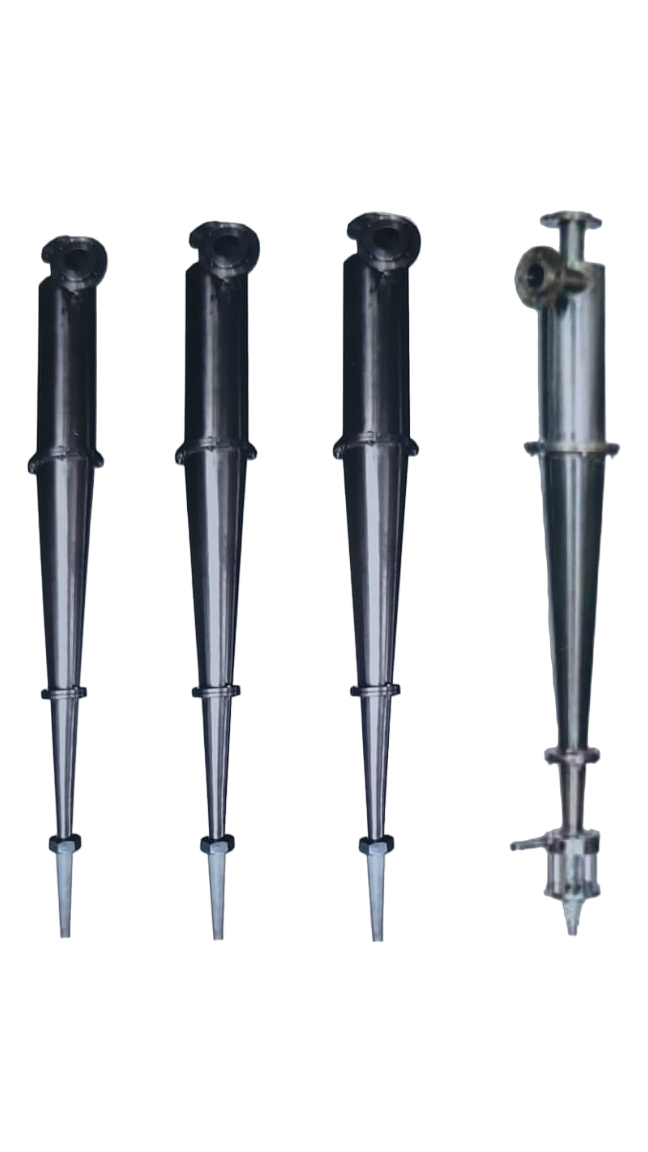

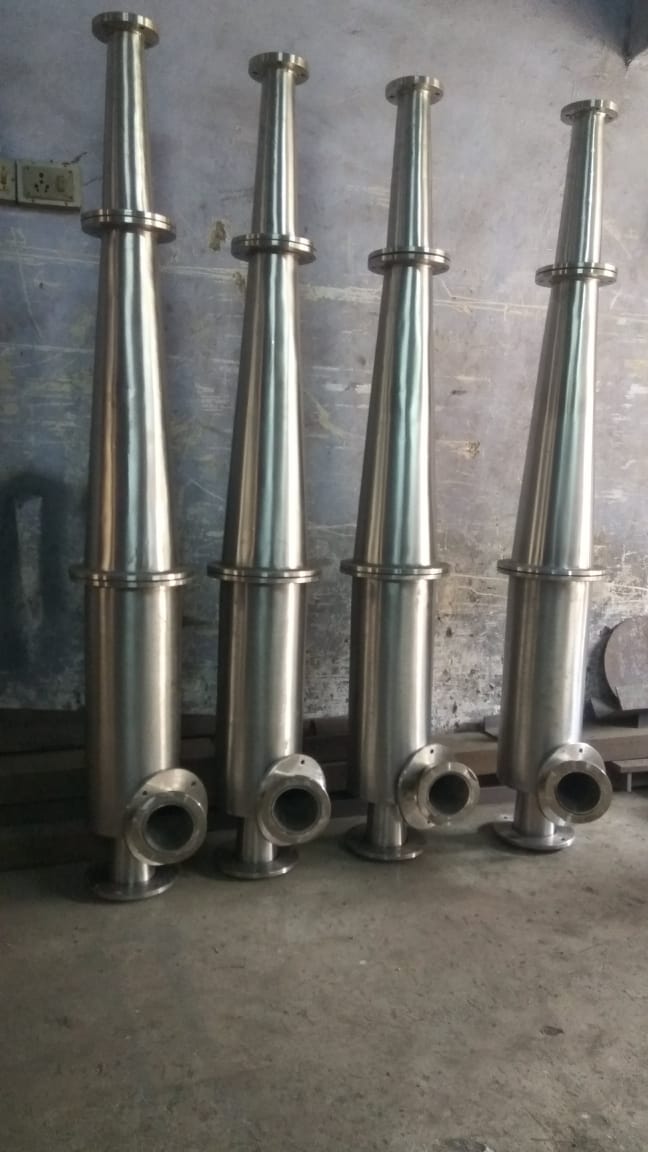

Low Density Cleaner ( Centricleaner )

Low Density Cleaner ( Centricleaner )


Description


Make Low Density Cleaner or Centricleaner separates components from the liquid containin Particles by introducing feed with high velocity in inlet tangentially into cylindrical body which set up circular flow and creates a cyclone to remove Air, Dirt, Sand, Unbeaten Paper Chips and other Nor Fibrous Dense Particles from Pulp and light particles discharged from discharge Nylon Nozzle at bottom.

All it happens due to its smooth internal surface and diameter of the Cylindrical Cone in small whic Ensure excellent Work. Pulp Cleaning process run up to Third or Fourth stage for getting higher rest and the last stage processed with Fiber Saver Unit, to recover Fiber.

Technical Specification
Tube Capacity 500 LPM TO 1000 LPM
Material Of Construction S.S.304/316
Operating Consistency 0.5 TO 1.0%
Operating Pressure 2.0 TO 2.5%
Pressure Drop 1.0 ΤΟ 1.5%
